Product Specification

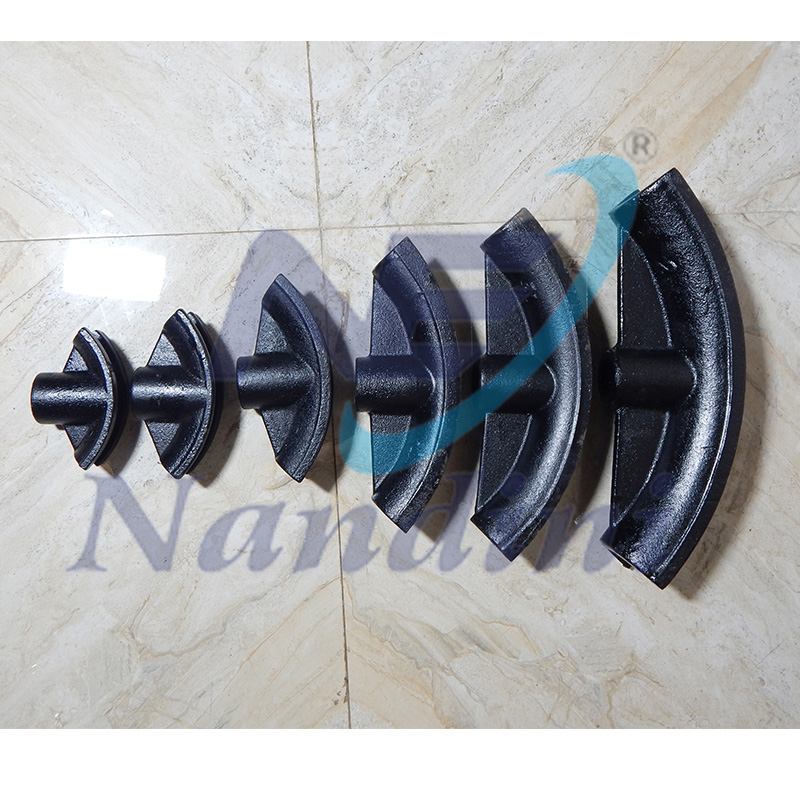

| Modal | Max Pressure | Max Stroke | Bending Dies | Pipe Wall Thickness | Weight | Dimension | Packing Way |
|---|---|---|---|---|---|---|---|
| NEB50A | 13T | 250MM | ½”, ¾”, 1”, 1¼”, 1½”, 2” | 2.75-4.5 mm | 53 Kg. | 730x320x200mm | Plywood |
| NEB80A | 20T | 320MM | ½”, ¾”, 1”, 1¼”, 1½”, 2”, 2½”, 3” | 2.75-5.00mm | 110 Kg | 960x430x250mm | Plywood |
| NEB100A | 23T | 370MM | ½”, ¾”, 1”, 1¼”, 1½”, 2”, 2½”, 3”, 4” | 2.75-6.00mm | 162 Kg | 1180x460x250mm | Plywood |
Product Features

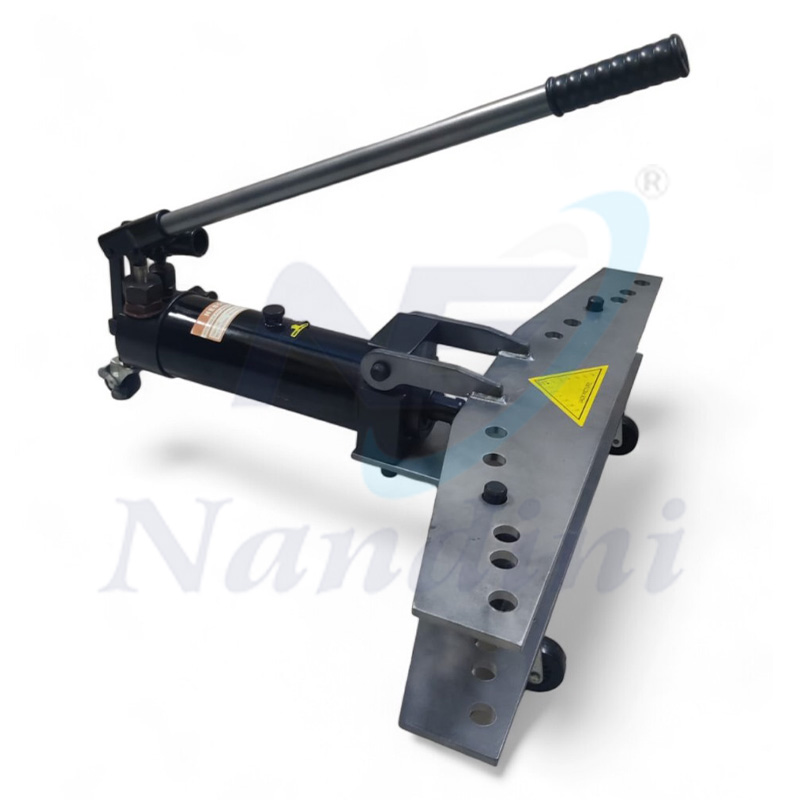

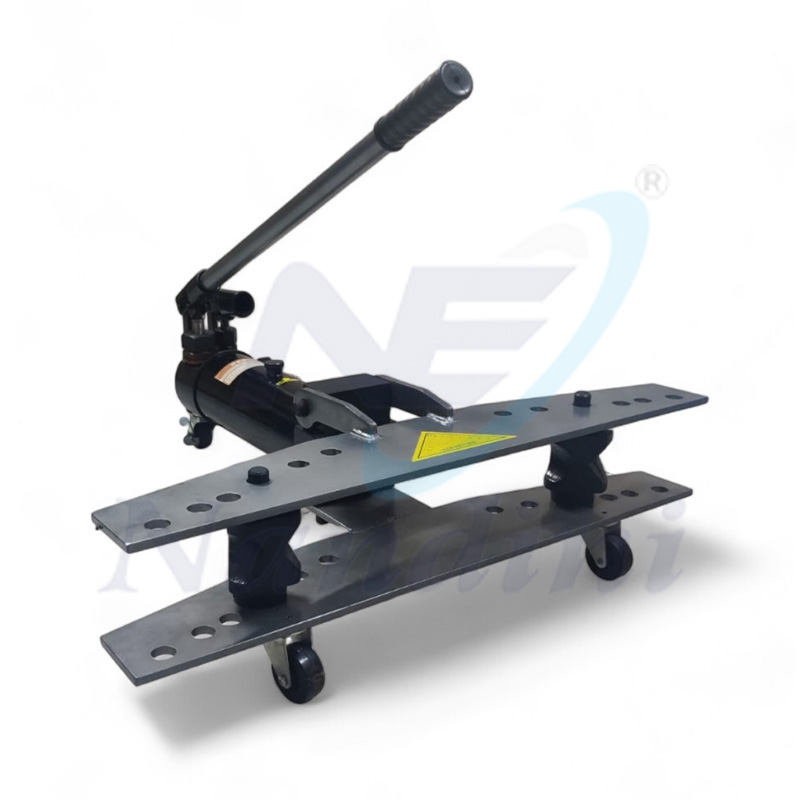

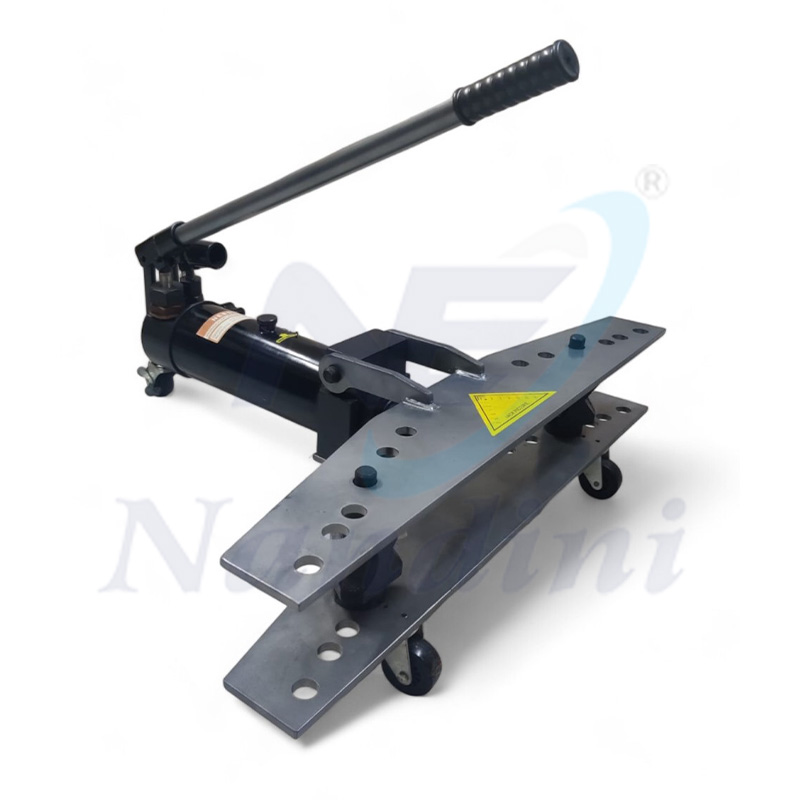

1. Hydraulic Pipe Benders provide easier bending than manual mechanical benders.
2. Cold bending pipes only in one turn. Up to 90 degree hydraulic equipment makes more precise bending.
3. Fast setup and disassemble, convenient removing with bottom wheels.
4. Suitable for cold bending of thick-walled pipes (gas pipe, water pipe, steam pipes, non-heated black iron pipes, galvanized pipes) up to 90 degree.
