Product Specification
| Modal | Max Pressure | Max Stroke | Pump | Bending Dies | Pipe Wall Thickness | Weight | Dimension | Packing Way |
|---|---|---|---|---|---|---|---|---|
| NEB-2M | 13T | 250MM | 750W | ½”, ¾”, 1”, 1¼”, 1½”, 2” | 2.75-4.5 mm | 74 Kg | 960x350x270mm | Plywood |
| NEB-3M | 20T | 320MM | 750W | ½”, ¾”, 1”, 1¼”, 1½”, 2”, 2½”, 3” | 2.75-5.00mm | 110 Kg | 960x430x250mm | Plywood |
| NEB-4M | 23T | 370MM | 750W | ½”, ¾”, 1”, 1¼”, 1½”, 2”, 2½”, 3”, 4” | 2.75-6.00mm | 174 Kg | 1180x460x320mm | Plywood |
Product Features
1. Electric hydraulic bender up to 4” pipe.
2. Using range: applicable to general pipe, conductor pipe, gas pipe, the thick steel pipe, etc., bending angle up to 90 degree.

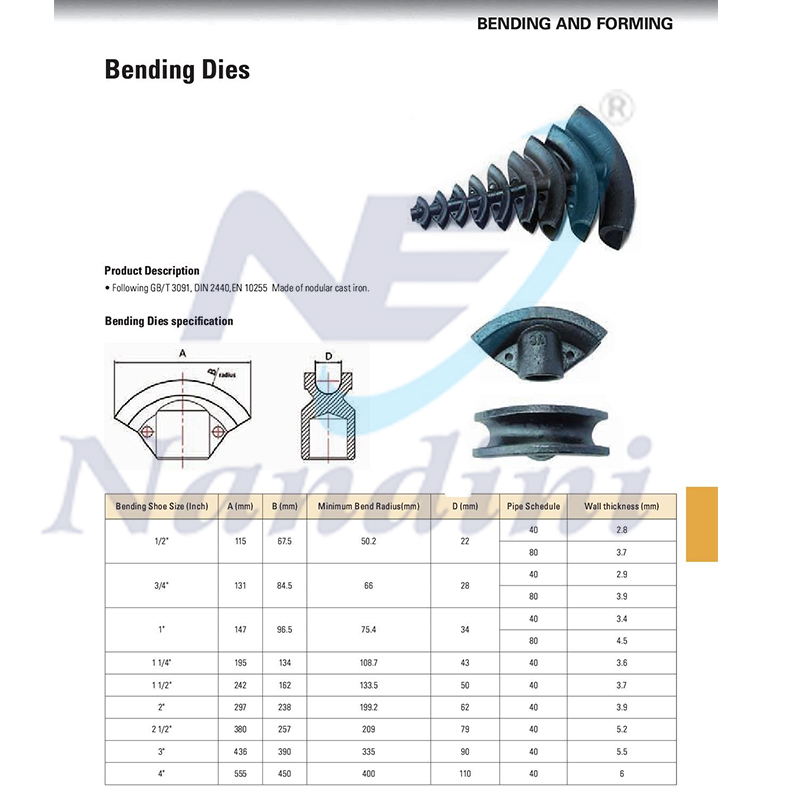

3. All bending shoes are made of cast iron than ordinary grey cast iron. With high strength, good toughness and plasticity, more resistant to use, not easy to break.
4. Fast setup and disassembly, convenient removing with bottom wheels.
5. Stands are optional instead of bottom wheels.
6. Equipped one-way pumps for single-acting applications.
7. Suitable for cold bending of thick-walled pipes (gas, water and steam pipes, non-heated black iron pipes, galvanized pipes), up to 90°.
