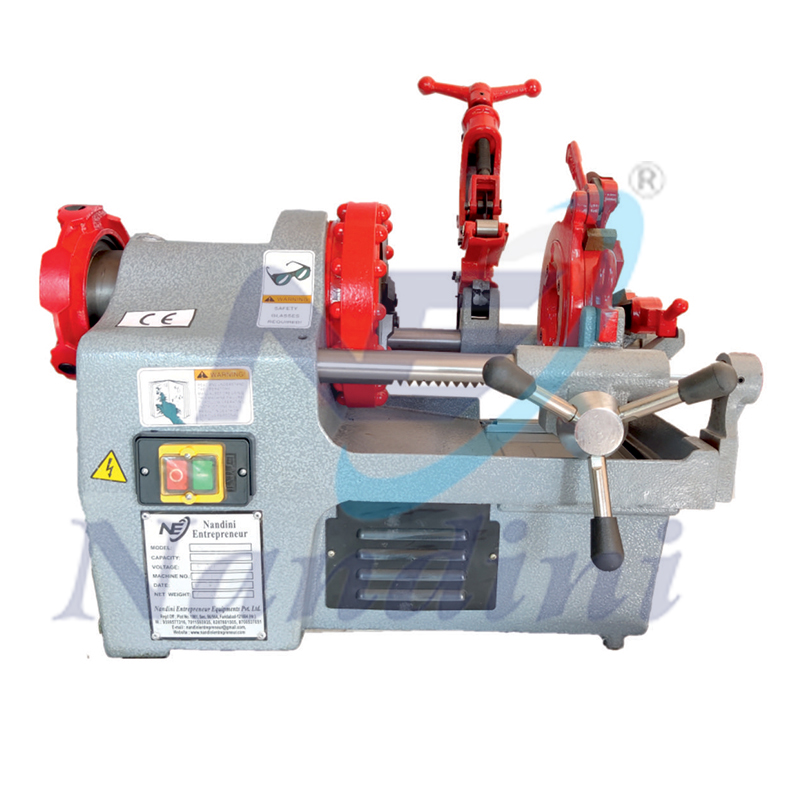

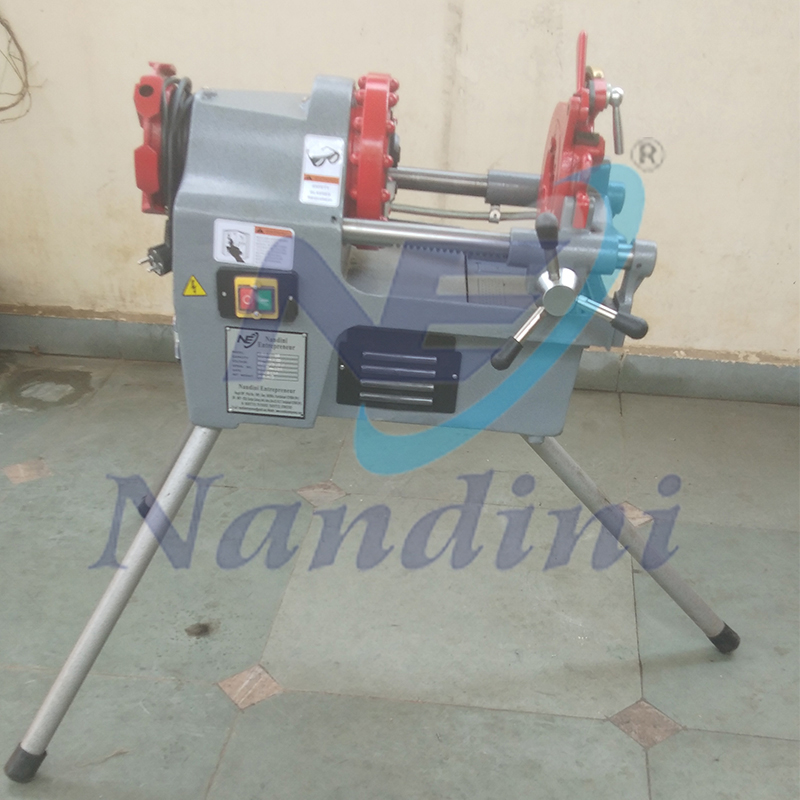

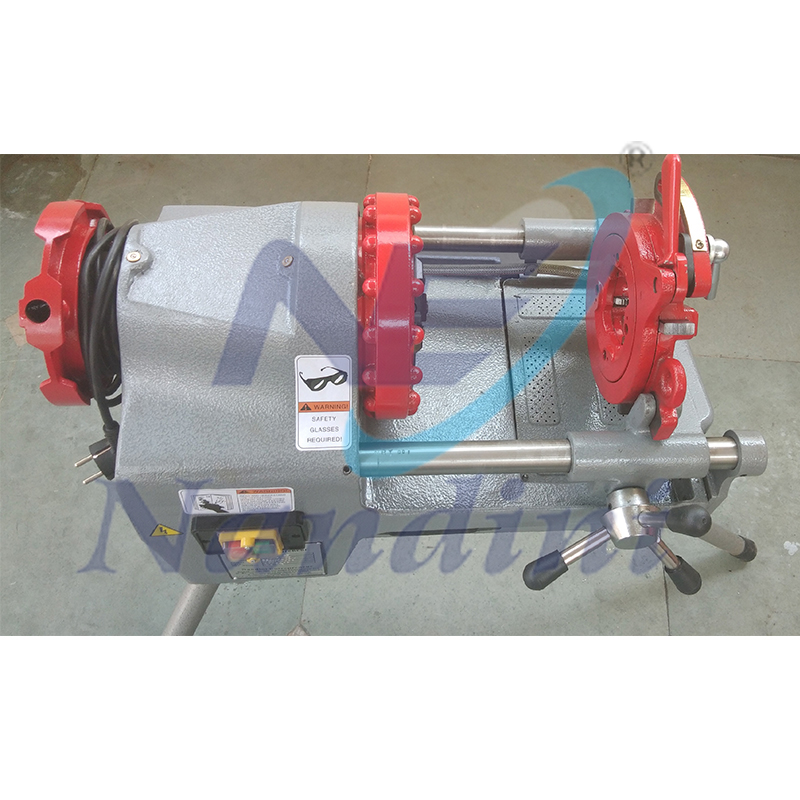

Portable Pipe & Bar Threading Machine

MODEL NO. NEPT33 Size:- M10-M33


Product Specification

Machine Size in pipe

Pipe Threading ½” to 2”

Machine Size in Bar

M10-M33

DIES

½”-¾”& 1”-2” universal dies set for Pipe Threading. (BSPT/NPT)
M10, M12, M14-M16, M18-M22, M24-M27, M30-M33 for Bar threading (BSW)

SpindleSpeed

28RPM

PowerSupply

220V/ 380V

Motor Power

750W / 900W (Single Phase)

Oiling System

Throughdie head, with integral oil reservoir

Pump

Self-priming constant flow
Product Features
1. Portable design & Work Quickly
2. Self-Contained Oil System with adjustable flow control.
3. One Operator can operate this machine easily
4. BSPT or NPT & BSW die can replace
5. It is versatile. Can use in plumbing line for GI pipe threading, firefighting line for MS pipe threading, electrical line for conduit pipe threading, foundation line for plain rod threading machine. Only need to replace the chaser.
  • Availability : Always Ex-stock
    •
  • Delivery : The machine will dispatch within day after received 100% payment
    •
Seaworthy Packing
  • Packing Size : 710x510x540
  • Gross Weight : 90Kg
  • Net Weight : 75 Kg
Standard Accessories
  • Manual -open die head.
  • ½”-¾”& 1”-2” universal dies set for Pipe Threading. (BSPT/NPT) other dies optional
  • Dies: M10, M12, M14-M16, M18-M22, M24-M27, M30-M33
  • Cutter: Capacity: 1/4”-2”(5 mm-50 mm) pipe only not Bar
  • Reamer
  • L-Key Set
  • Screw Driver
  • Machine Stand
