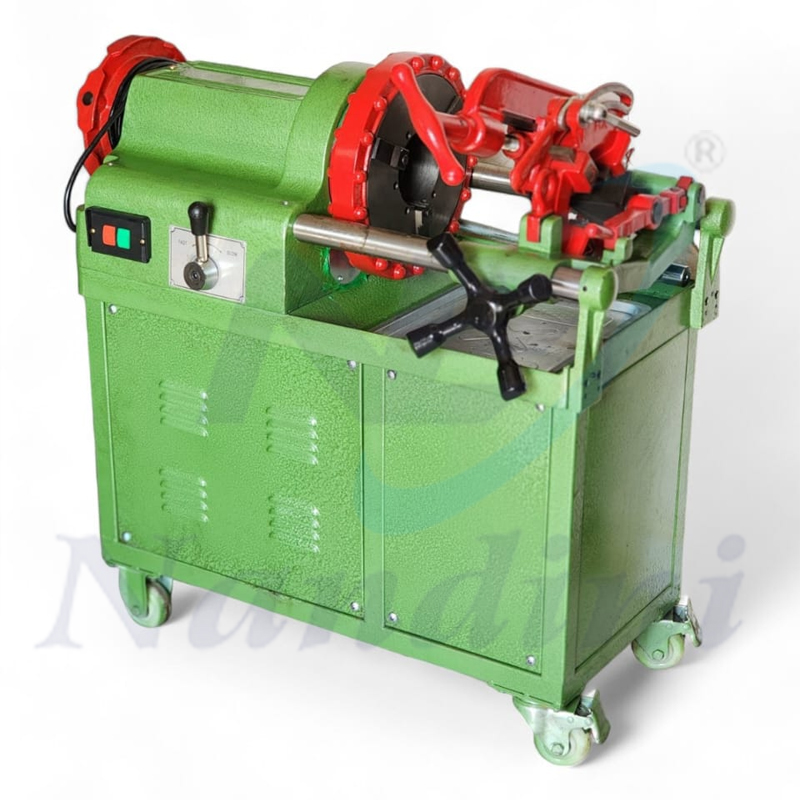

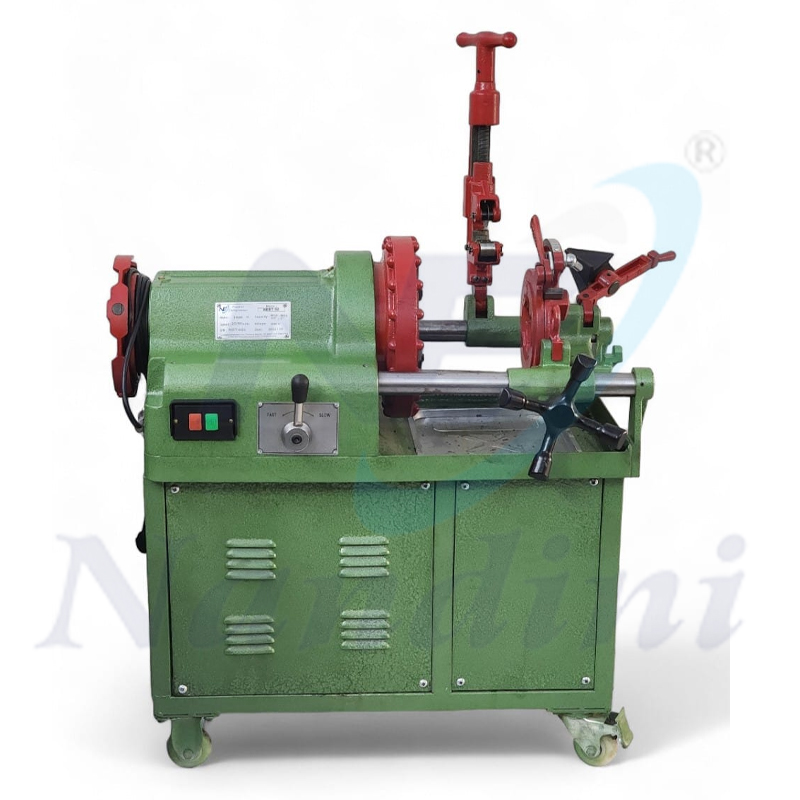

Portable Pipe & Bar Threading Machine

Home Portable Pipe & Bar Threading Machine

Portable Pipe & Bar Threading Machine

MODEL NO. NEPT52 Size:- M10-M52


Product Specification

Machine Size in pipe

Pipe Threading ½” to 3”

Machine Size in Bar

M10-M52

DIES

½”-¾” , 1”-2”& 2½” - 3” universal dies set for Pipe Threading. (BSPT/NPT)
M10, M12, M14-M16, M18-M22, M24-M27, M30-M33, M36-M39, M42-M45, M48-M52, for Bar threading (BSW)

SpindleSpeed

25/50
(Two Speeds)

PowerSupply

220V/ 380V

Motor Power

1500W (Single Phase/3 Phase)

Oiling System

Throughdie head, with integral oil reservoir

Pump

Self-primingconstant flow
Product Features
1. Easy operate & Work quickly
2. Self-Contained Oil System with adjustable flow control.
3. One Operator can operate this machine easily
4. BSPT or NPT & BSW die can replace
5. It is versatile. Can use in plumbing line for GI pipe threading, firefighting line for MS pipe threading, electrical line for conduit pipe threading, foundation line for plain rod threading machine. Only need to replace the chaser.
  • Availability : Always Ex-stock
    •
  • Delivery : The machine will dispatch within day after received 100% payment
    •
Seaworthy Packing
  • Packing Size : 1000x540x880
  • Gross Weight : 155Kg
  • Net Weight : 130 Kg
Standard Accessories
  • Manual -open die head.
  • ½”-¾”& 1”-2” universal dies set for Pipe Threading. (BSPT/NPT) other dies optional
  • Dies: M10, M12, M14-M16, M18-M22, M24-M27, M30-M33, M36-M39, M42-M45, M48-M52,
  • L-Key Set
  • Screw Driver
  • Machine Stand
