1. Excellent Performance and long-lasting life.

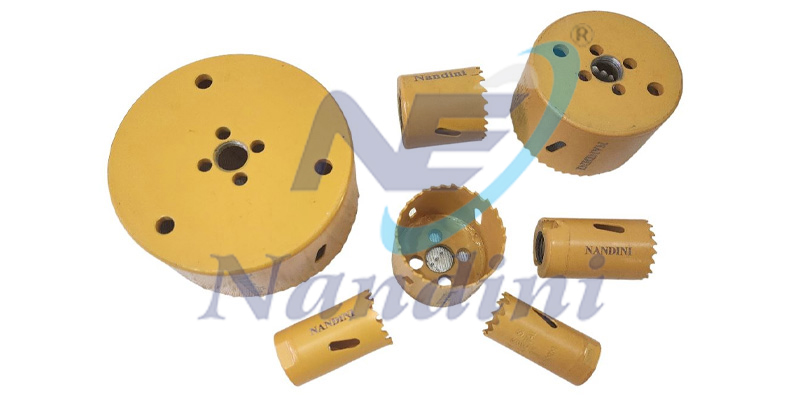

2. BI-metal construction with teeth made from specially hardened M3 or M42 high speed steel. The varying teeth height and gullet sizes result in much faster cutting and longer life. Suitable for various material like mild steel, tool and stainless steel, brass, aluminium, wood. Size ranges from 14mm to 210 mm.
3. Depth of Cut: 38 mm
4. Use high quality thread cutting oil on all metal except cast iron.
5. Application : Using with pipe hole cutters for steel hole cutting.

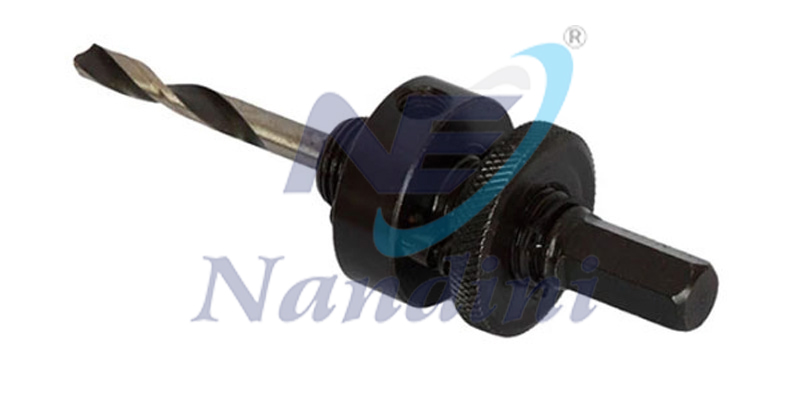

Sizes	Application of Arbor (Drill Bit)
14mm	A1
16mm	A1
19mm	A1
20mm	A1
22mm	A1
24mm	A1
25mm	A1
27mm	A1
29mm	A1
30mm	A1
32mm	A1
35mm	A1
38mm	A1
40mm	A1
43mm	A1
44mm	A1
46mm	A1
48mm	A1
51mm	A1
52mm	A1
54mm	A1
57mm	A1
59mm	A1
60mm	A1
64mm	A1
65mm	A1
66mm	A1

Sizes	Application of Arbor (Drill Bit)
68mm	A2
70mm	A2
73mm	A2
76mm	A2
79mm	A2
83mm	A2
84mm	A2
85mm	A2
86mm	A2
89mm	A2
92mm	A2
98mm	A2
102mm	A2
108mm	A2
114mm	A2
127mm	A2
140mm	A2
146mm	A2
152mm	A2
