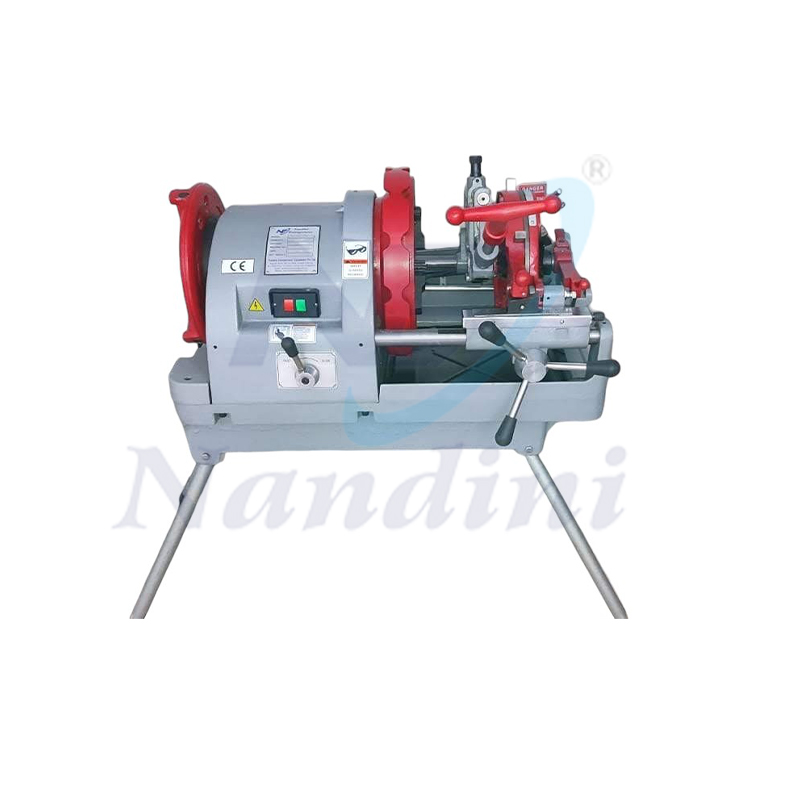

Electric Pipe Threading Machine

Model : NE-T6-150 SIZE :- 2 ½” TO 6"


Product Specification
1. Machine Size : 2½” to 6” (65 mm to 150 mm)
2. Dies : 2½”-4” & 5”-6” universal dies set for Pipe Threading. (BSPT/NPT)
3. Spindle Speed : 22/9 RPM
4. Power Supply : 220V/380V (Single/ 3 Phase)
5. Motor Power : 1100W
6. Oiling System : Through die head, with integral oil reservoir
7. Pump : Self-priming constant flow
8. Thread Application : MS Pipe, GI Pipe & SS Pipe Optional
Product Features
1. An induction motor ensures sound levels well when using
2. 2½”-4” universal Die Head; 5”-6” receding die head allows cutting of tapered or straight BSPT / NPT
3. Self-Contained Oil System with adjustable flow control.
4. It can Pipe Cutting, Threading & Reamering

  • Availability : Always Ex-stock
  • Delivery : The machine will dispatch within day after received 100% payment

Seaworthy Packing
  • Packing Size : 1100x740x700 MM
  • Gross Weight : 220 Kg.
  • Net Weight : 180 Kg.
Standard Accessories
1. Self-open die head.
2. 2½” to 4” & 5” to 6” universal dies set for Pipe Threading. (BSPT/NPT)
3. Cutter: Capacity: 2½”-6”(65 mm-150 mm) pipe
4. Cutting Wheel
5. Reamer
6.L-Key Set
7.Screw Driver
8.Machine Stand
