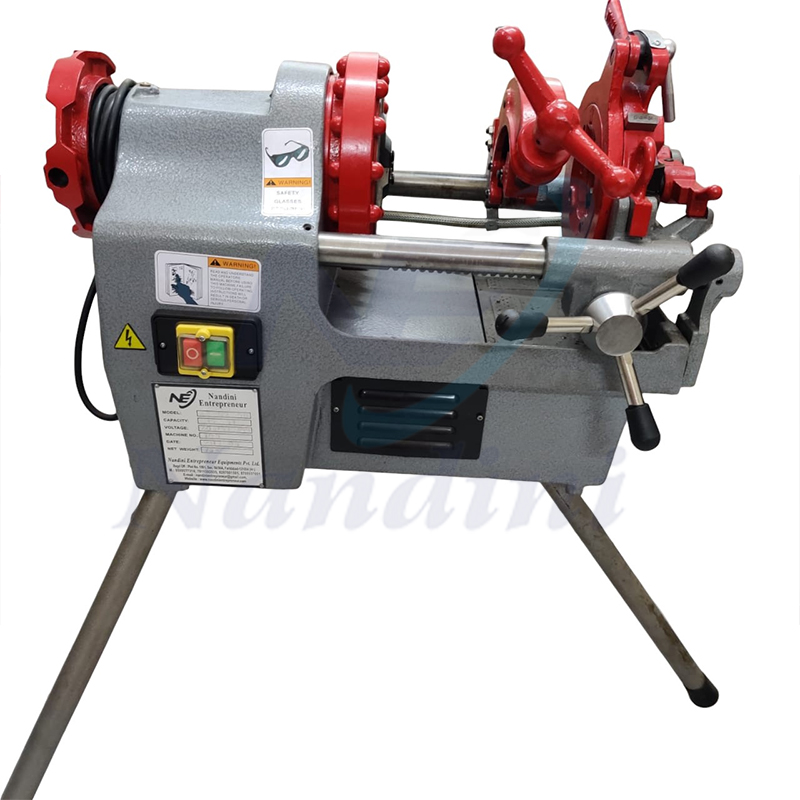

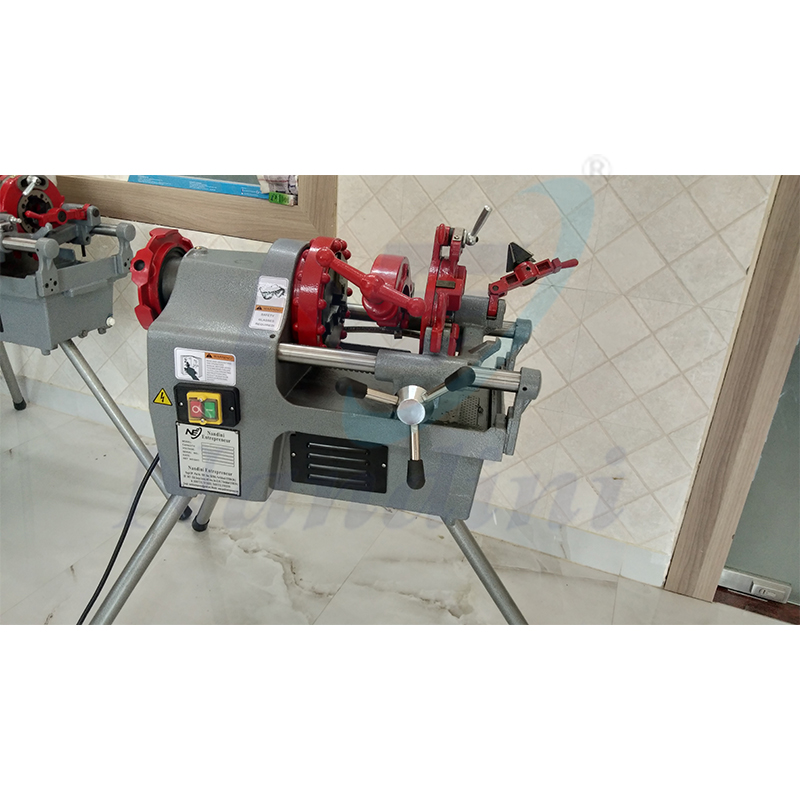

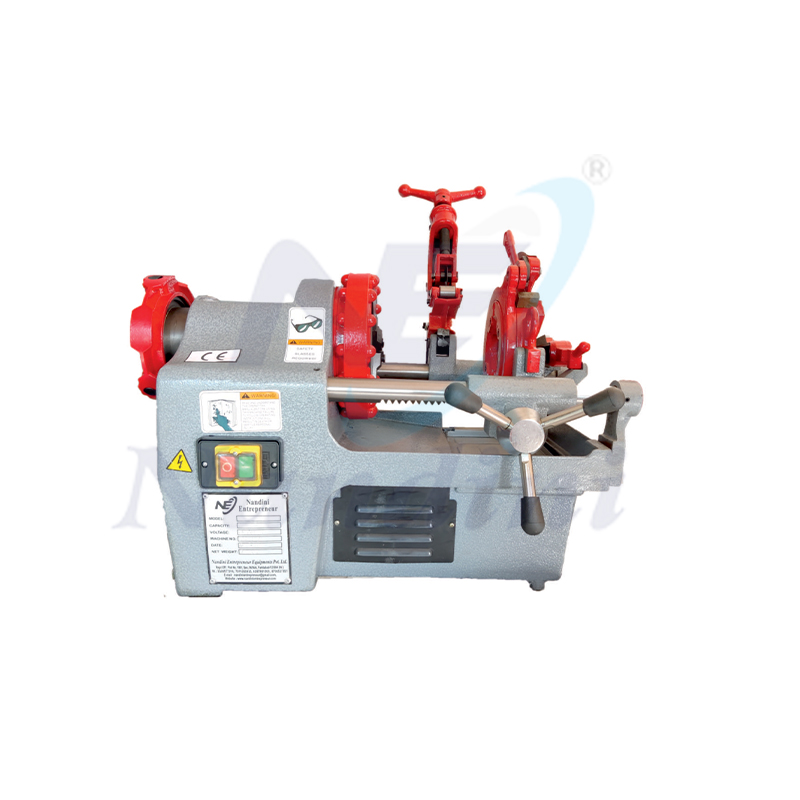

Electric Pipe Threading Machine

Model : NE-C2-50A SIZE :- 1/2" TO 2"


Product Specification
1. Machine Size : Pipe Threading ½” to 2”
2. Dies : ½”-¾”& 1”-2” universal dies set for Pipe Threading. (BSPT/NPT)
3. Spindle Speed : 28RPM
4. Power Supply : 220V/ 380V
5. Motor Power : 750W / 900W/1100W (Single Phase)
6. Oiling System : Through die head, with integral oil reservoir
7. Pump : Self-priming constant flow
Product Features
1. Portable design & Work Quickly
2. Self-Contained Oil System with adjustable flow control.
3. One Operator can operate this machine easily
4. BSPT or NPT die can replace
5. It is versatile. Can use in plumbing line for GI pipe threading, firefighting line for MS pipe threading, electrical line for conduit pipe threading, foundation line for plain rod threading machine. Only need to replace the chaser.

  • Availability : Always Ex-stock
  • Delivery : The machine will dispatch within day after received 100% payment

Seaworthy Packing
  • Packing Size : 700x450x540
  • Gross Weight : 86 Kg.
  • Net Weight : 75 Kg.
Standard Accessories
1. Manual -open die head.
2. ½”-¾”& 1”-2” universal dies set for Pipe Threading. (BSPT/NPT) other dies optional
3. Cutter: Capacity: 1/4”-2”(5 mm-50 mm) pipe
4. Reamer
5. L-Key Set
6. Screw Driver
7. Machine Stand
