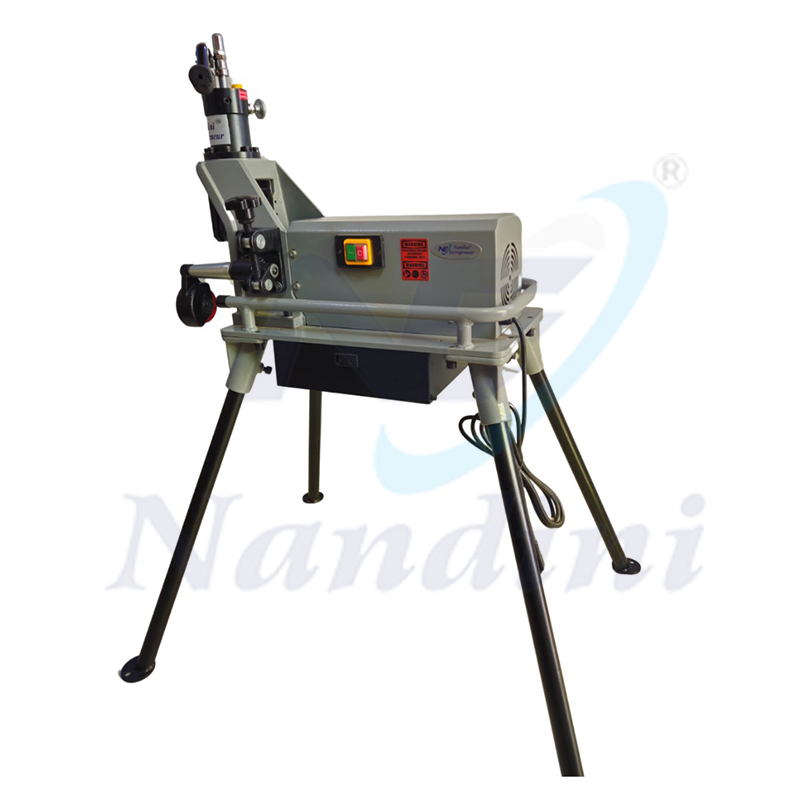

ELECTRIC PIPE GROOVING MACHINE

Model : NEG12M SIZE :- 1” to 12”


Product Specification
1. Machine Size : 1” to 12” (25 mm to 300 mm)

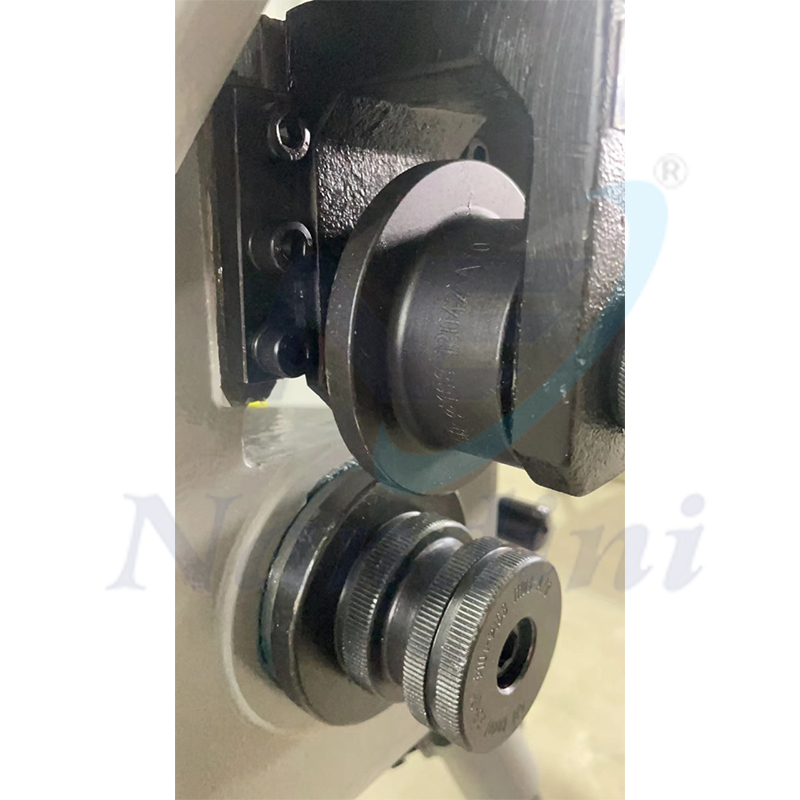

2. Grooving Wheel (Knurling Roller) : 1” to 1½”, 2” to 3”, 3½” to 6”, 8” to 12”
3. Pressure Wheel (Roller) : 1” to 1½”, 2” to 6”, 8” to 12”
4. Spindle Speed : 24RPM
5. Power Supply : 220V, 50/60Hz
6. Motor Power : 1100W Induction (Single Phase)
7. Capacity : 8 mm
8. Weight : 130 Kg
Product Features
1. “Model NEG12M Electric Hydraulic Roll Grooving Machine is designed to roll grooves on steel pipes and stainless steel from 1"-12" SCH10/SCH20, 1"-8" SCH10/SCH40
2. Longer working life: durable motor and gear box
3. Appropriate for various daily tasks involving fire-fighting pipes, this roll groover is a comprehensive tool that includes a motor, hydraulic feeding pump, foot switch, and pipe stand.
4. The unique combination of the hydraulic feeding pump and the groove depth lock knob guarantees premium grooves and optimal efficiency.
5. One Operator can operate this machine easily.
6. Heavy duty Pipe support Stand.
  • Availability: Always Ex-stock
    •
  • Delivery: The machine will dispatch within day after received 100% payment
    •
