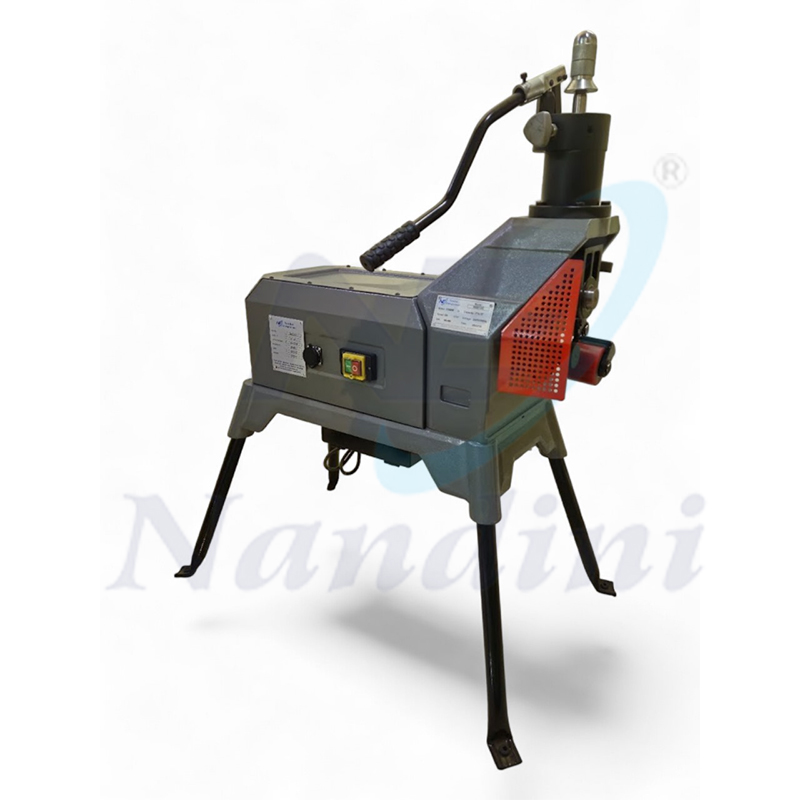

ELECTRIC PIPE GROOVING MACHINE

Model : NEG12C SIZE :- 1” TO 12"


Product Specification
1. Machine Size : 1” to 12” (25 mm to 300 mm)
2. Grooving Wheel : 1”, 1¼”-1½”, 2” – 6” & 8”-12”
3. Pressure Wheel : 1”-1½”, 2”-6” & 8” - 12”
4. Spindle Speed : 26RPM
5. Power Supply : 220V/ 380V
6. Motor Power : 1100W Induction (Single Phase)
7. Capacity : Sch10 2”-12” , Sch40 2”-6”
Product Features
1. The Hydraulic Roll Groover, powered by 1100 W induction motor, is capable of grooving up to 12”Sch 10 and 6” SCh 40 standard wall pipes.
2. “All in one “design of drive shaft for more steady work.
3. It comes with standard support legs, the unit can be set up quickly.
4. The induction motor ensures steady and quiet working.

  • Availability : Always Ex-stock
  • Delivery : The machine will dispatch within day after received 100% payment

Seaworthy Packing
  • Packing Size : 900x420x580
  • Gross Weight : 140 Kg.
