German Technology Pipe Threading Machine

Home German Technology Pipe Threading Machine

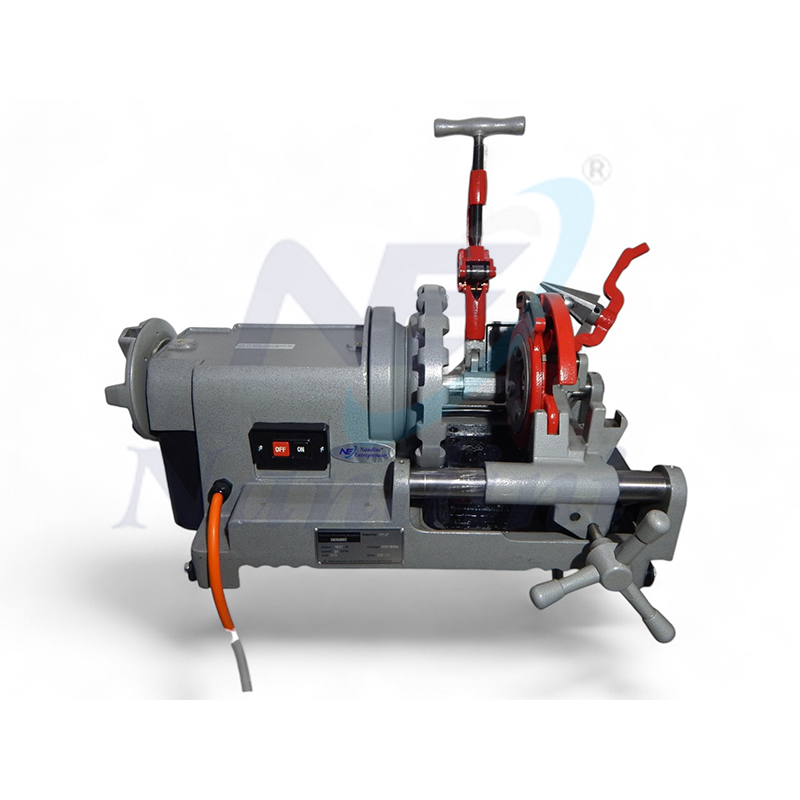

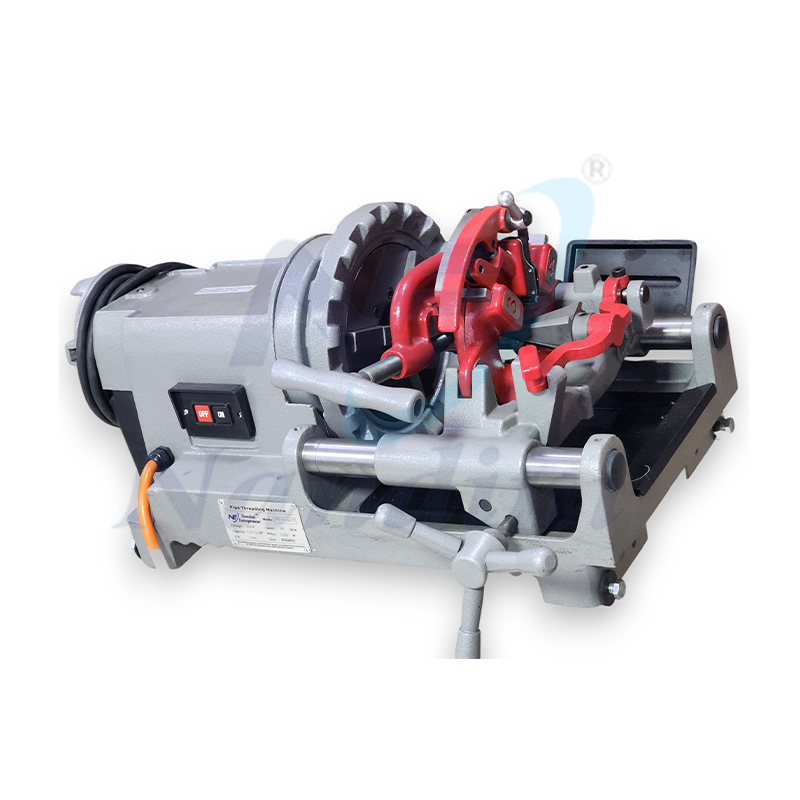

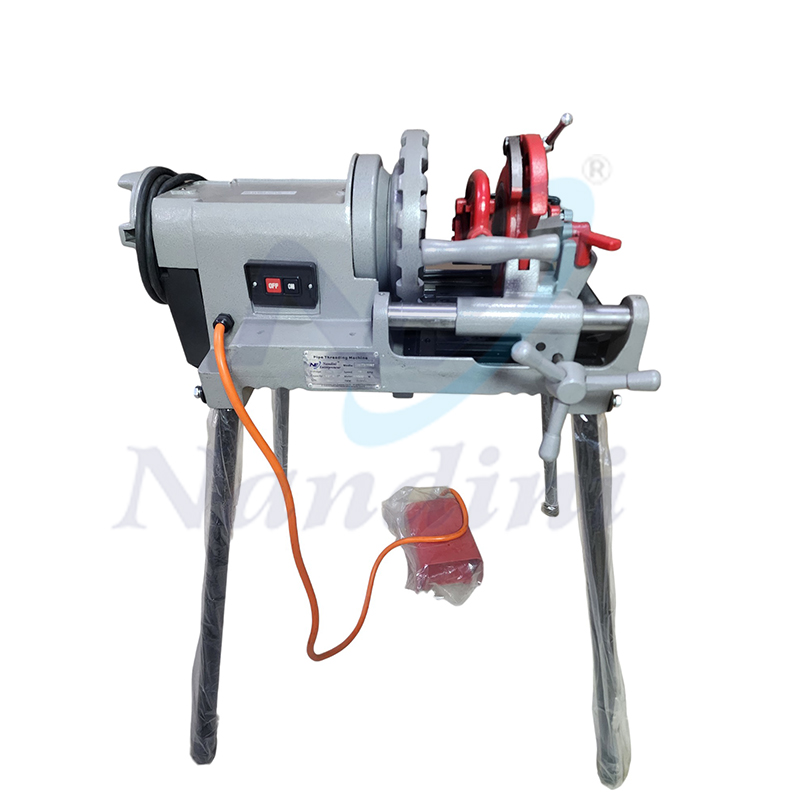

ELECTRIC PIPE THREADING MACHINE

Model : NE-T2-50RT SIZE 1/2" TO 2"


Product Specification
1. Machine Size : ½” to 2” (15 mm to 50 mm)
2. Dies : ½”to ¾”& 1” to 2” universal dies set for Pipe Threading. (BSPT/NPT)
3. Thread Application : MS Pipe, GI Pipe & SS Pipe Optional
4. Spindle Speed : 38 RPM
5. Power Supply : 220V/ 50/60 Hz
6. Motor Power : 1500W (Single Phase)
7. Oiling SYstem : Through die head, with integral oil reservoir
8. Pump : Self-priming constant flow
Product Features
1. Heavy duty proven performance
2. Lightweight, Portable Design
3. Fast transport and set-up
4. Self-Contained Oil System with adjustable flow control.
5. Self-open die head and automatically threading length setting
6. One Operator can operate this machine easily
7. BSPT or NPT die can replace
Product Accessories
1. Self-open die head.
2. ½”-¾”& 1”-2” universal dies set for Pipe Threading. (BSPT/NPT)
3. Cutter: Capacity: 1/4”-2”(5 mm-50 mm) pipe
4. Cutting Wheel
5. Reamer
6. L-Key Set
7. Screw Driver
8. Machine Stand
