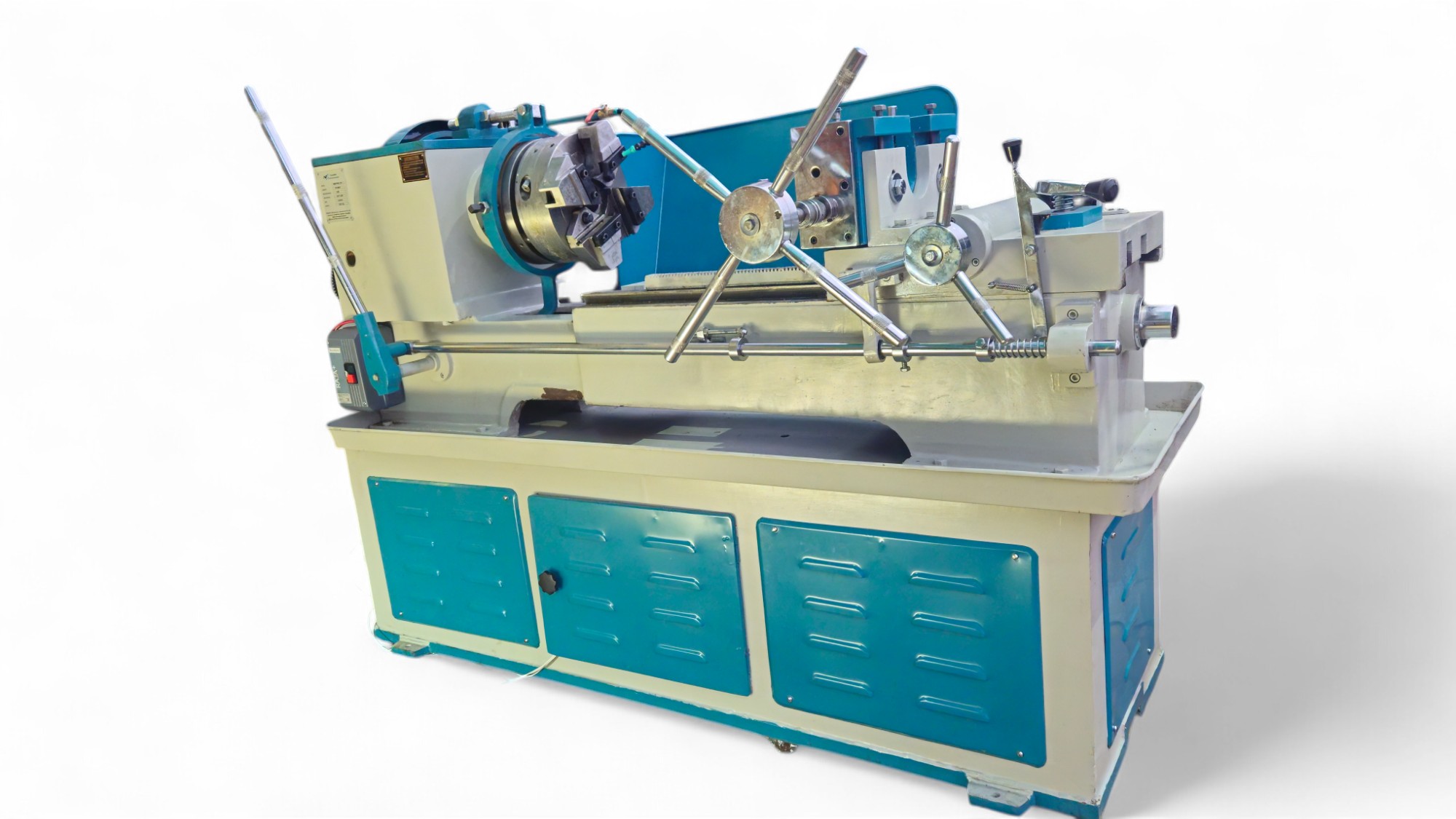

The Bar Threading Machine is designed to cut external threads on bars using tangential chasers. The chaser acts as the cutting tool while the bar remains stationary and the die head rotates. It can produce various thread profiles including BSW, NPT, UNF, UNC, Metric, ACME, and BSF threads.
Heavy-duty 75mm spindle bore fitted with high-quality taper roller bearings for smooth and accurate threading operations.
All gears are hardened and tempered, ensuring durability, reliability, and longer service life.
Equipped with a 12-inch motor pulley, V-belt drive system, and robust vice with jaw for secure clamping of the workpiece.
Delivers superior performance, high productivity, and precision threading.
Designed for long-lasting operation with minimal maintenance requirements.
Suitable for threading MS rods, GI rods, TMT bars, rebars, and pipes. Pipe and rod threading can be performed by simply changing the dies.
Capable of threading lengths up to 20 inches, and can accommodate rods up to 6 meters in length.
Ideal for commercial applications and mass production, providing consistent thread quality and high output.
Available in both Single Phase and Three Phase models with dual spindle speeds of 60 RPM and 90 RPM to suit different threading requirements.
