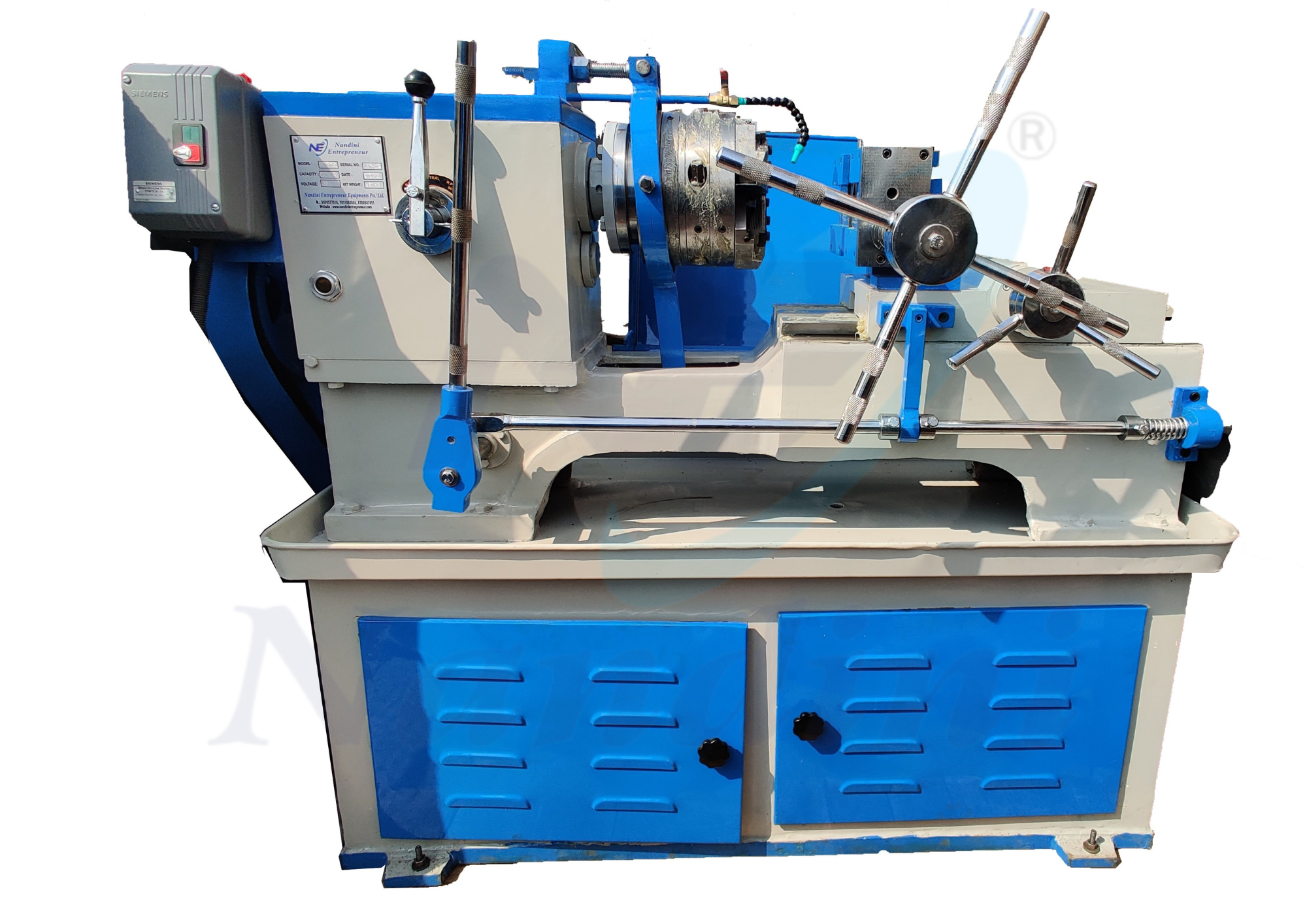

TMT/RoundBar/Pipe Threading Machine 3/8”-1”

• The Bar Threading Machine is designed to cut external threads on bars using tangential chasers. The chaser acts as the cutting tool while the bar remains stationary and the die head rotates. The machine can produce various thread types including BSW, NPT, UNF, UNC, Metric, ACME, and BSF threads.
• Equipped with a 40 mm spindle bore fitted with high-quality taper roller bearings for smooth and precise operation.
• All gears are hardened and tempered for durability and long service life. Oil seals are provided for reliable lubrication and protection.
• Heavy-duty construction with a 12-inch motor pulley, V-belt drive system, and robust vice fitted with jaws for secure clamping.
• Delivers superior performance, high accuracy, and consistent thread quality.
• Designed for long service life with low maintenance requirements.
• Suitable for threading on all types of rods, TMT bars, rebars, and pipes. Only the dies need to be changed when switching between rod and pipe threading applications.
• Capable of threading lengths up to 14 inches, with the ability to accommodate rods up to 6 meters in length.
• Ideal for commercial and mass-production applications, ensuring high productivity and efficiency.
• Available in Single Phase and Three Phase models with dual spindle speeds of 90 RPM and 150 RPM for different threading requirements.
