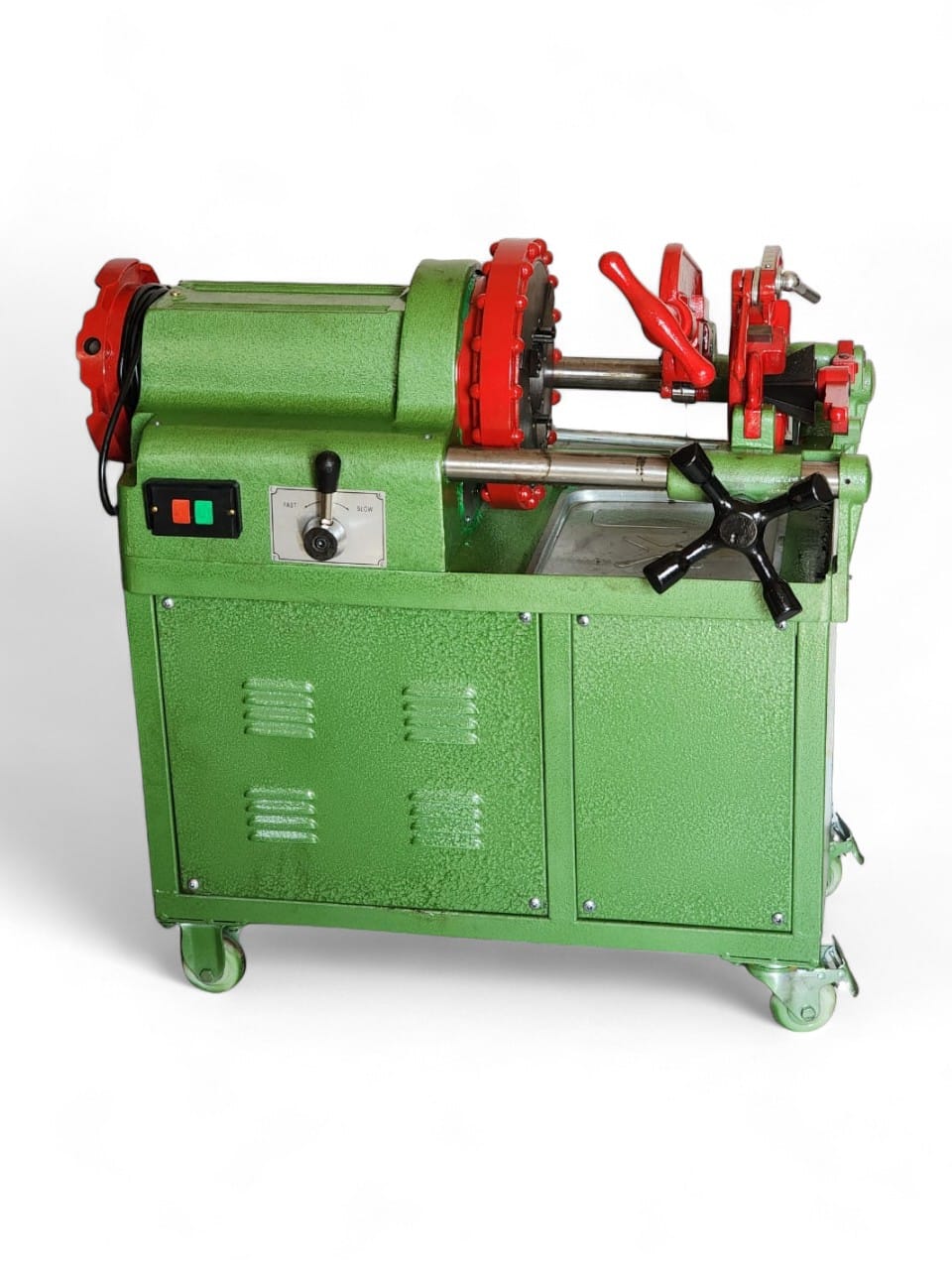

Portable Bar and Pipe Threading machine M10-M52 Heavy Duty
Bar and Pipe Threading machine

Portable Bar and Pipe Threading machine M10-M52 Heavy Duty

  • Easy to operate with fast and efficient threading performance.
  • Self-contained oil system with adjustable flow control for smooth operation and extended die life.
  • Can be easily operated by a single operator.
  • Compatible with BSPT, NPT, and BSW dies, which can be replaced as required.
  • Suitable for rod threading from M10 to M52 and pipe threading from ½” to 3” on GI, MS, and SS pipes (SS pipe threading optional).
  • Highly versatile machine for multiple applications:
  • * Plumbing lines for GI pipe threading
  • * Firefighting lines for MS pipe threading
  • * Electrical lines for conduit pipe threading
  • * Foundation work for plain rod threading
  • Only the chaser needs to be changed for different threading applications.
CategoryBar and Pipe Threading machine
Brand / ModelModel No.NEBT52
Country of OriginIndia
MOQ1
Supply Ability10
Delivery TimeAfter receiving the payment, same day dispatch
PackagingSeaworthy wooden box packing with thermocol.

Specifications

PumpSelf-primingconstant flow
Bar DiesM10, M12, M14-M16, M18-M22, M24-M27, M30-M33, M36-M39, M42-M45, M48-M52, for Bar threading (BSW)
Pipe Size½”-¾” , 1”-2”& 2½” - 3” universal dies set for Pipe Threading. (BSPT/NPT)
Motor Power1500W (Single Phase/3 Phase)
Power supply220V/ 380V
Spinal Speed25/50RPM (Two Speeds)
Oilling SystemThrough Die head, with integral oil reservoir
Bar Threading SizeM10-M52
Pipe Threading Size1/2”-3”
