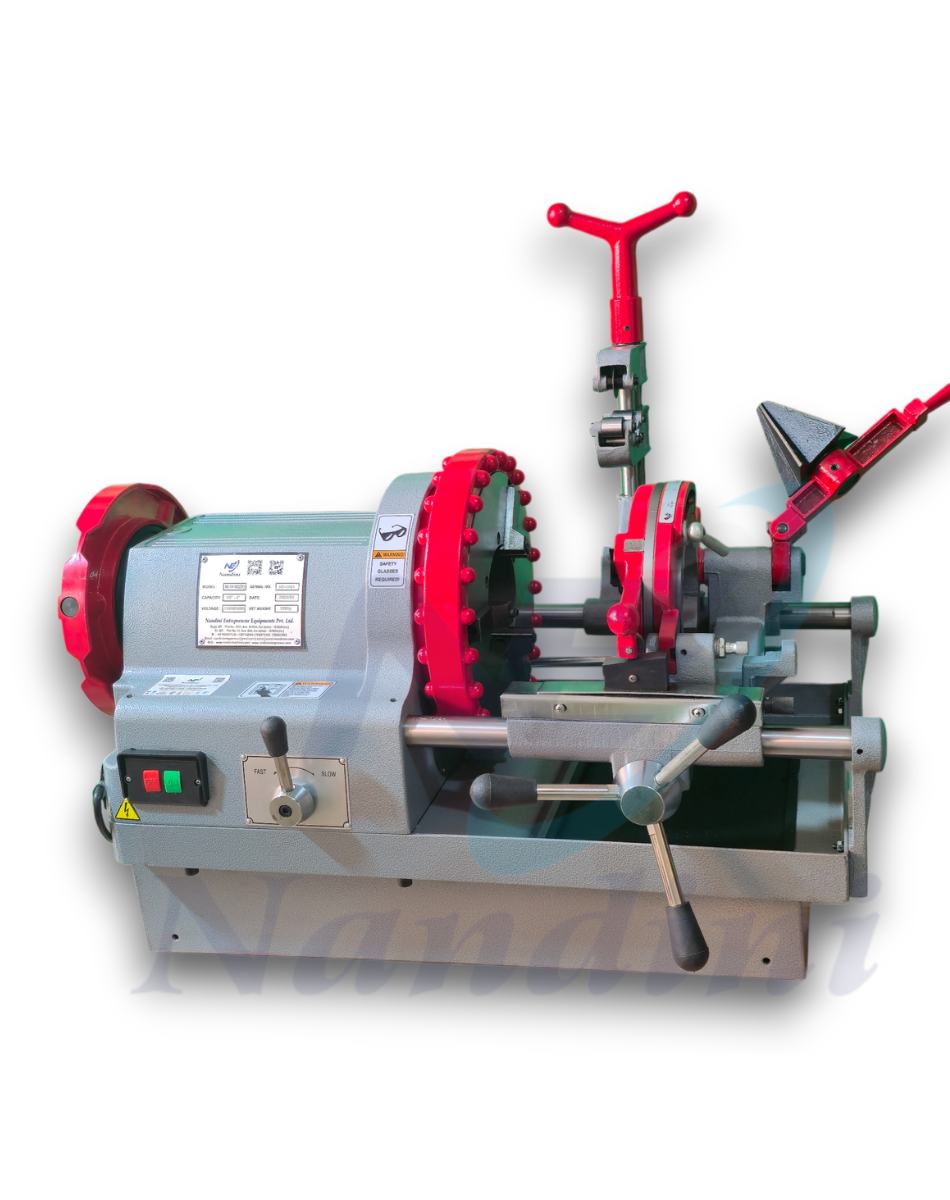

Electric Pipe Threading M/c -1/2"-4"
Pipe Threading machine

Electric Pipe Threading M/c -1/2"-4"

  • ✅ Portable Design & Fast Working
  • Compact and portable design enables easy transportation and quick threading operations on-site.
  • ✅ Self-Contained Oil System
  • Built-in oil lubrication system with adjustable flow control ensures smooth threading and extended die life.
  • ✅ Easy Single-Operator Operation
  • User-friendly design allows one operator to efficiently handle the machine without additional assistance.
  • ✅ Interchangeable BSPT & NPT Dies
  • Compatible with both BSPT and NPT threading standards. Die sets can be changed easily according to application requirements.
  • ✅ Automatic Oil Circulation
  • Equipped with an automatic oil circulation system for continuous lubrication and improved threading performance.
  • ✅ Adjustable Automatic Threading Length
  • Threading length is automatically controlled and can be easily adjusted to meet different job requirements, ensuring consistent and accurate results.
  • Nandini Entrepreneur Equipments Pvt. Ltd.
  • Portable • Efficient • Accurate • Reliable 🔧🚀
CategoryPipe Threading machine
SubcategoryElectric Pipe Threading Machine
Brand / ModelModel No.: NE-T4-100
Country of OriginIndia
MOQ1
Supply Ability25
Delivery TimeDelivery : The machine will dispatch within day after received 100% payment
PackagingSEAWORTHY PALLET WOODEN BOX

Specifications

Motor Power:1100W (Single Phase/Three Phase)
🔹 Die Sets:• ½" – ¾" • 1" – 2" • 2½" – 4" (BSPT / NPT Thread Standards)
🔹 Oil Pump:Self-Priming Constant Flow Pump
🔹 Motor Power:1100W (Single Phase)
🔹 Power Supply:220V / 380V
🔹 Oiling System:Through Die Head with Integral Oil Reservoir
🔹 Spindle Speed:27 / 11 RPM (Dual Speed)
🔹 Threading Capacity:½" to 4" (15 mm to 100 mm)
🔹 Threading Applications:• MS Pipe Threading • GI Pipe Threading • SS Pipe Threading (Optional)
